Every course change and every target, on one record.
MScribe AIS keeps a continuous record of how the ship was steered and of the traffic around it. Heading, rudder and autopilot are drawn on one live timeline, and the AIS picture is recorded alongside it — so a manoeuvre can be reviewed exactly as it happened.
Every target around you, on the record.
The traffic picture, on screen
AIS messages from the vessels around you are received and drawn in place, so the bridge sees where each one is and how it is moving — alongside own-ship's own course record.
Heading and track of every target
Each target carries the direction it is making good and the track it has left behind, so a developing situation can be read at a glance rather than worked out.

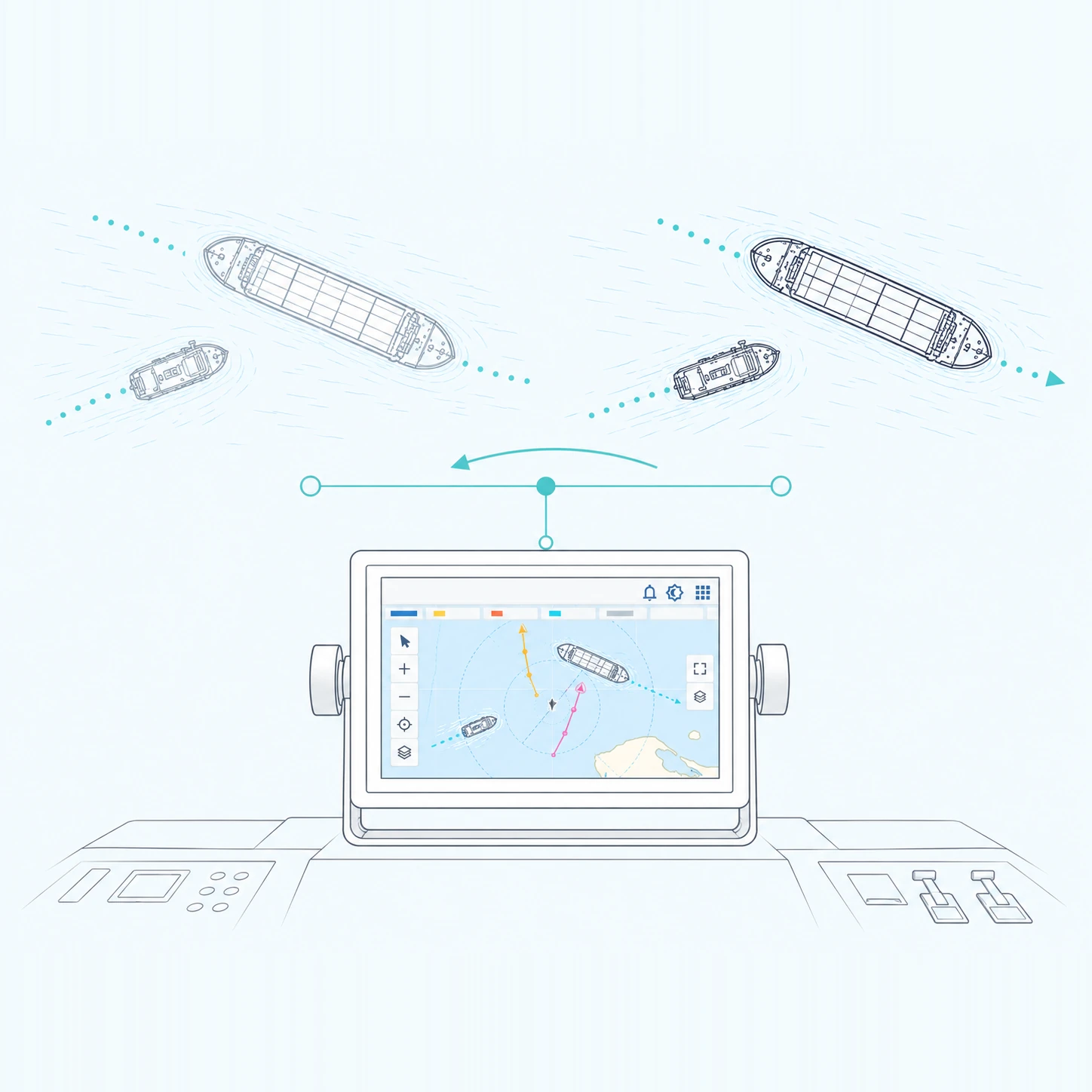

Replay the whole picture
Recorded traffic can be opened again afterwards and watched back, showing where the vessels around you were in relation to each other at any moment of the passage.
Key Benefits
Heading, rudder and autopilot on one live timeline.
AIS traffic recorded with own-ship track and replayed.
Target list, own-ship data and event log in one view.
Bridge Alert Management with acknowledge, mute and history.
The whole picture, kept.
A course recorder that remembers the whole picture.
MScribe AIS is a digital course and AIS recorder built on the SEALINK 5200 bridge platform. It replaces the mechanical course recorder with a continuous digital record of heading, set heading, rudder angle, rudder order and autopilot state — and adds what a classic course recorder never had: the AIS traffic picture around the vessel, recorded and replayable alongside own-ship's own track. Rudder response, autopilot mode, cross-track error and the position of every nearby target can be reviewed together after a manoeuvre, a close-quarters situation or an incident. Everything runs on a 5” capacitive touch display with AG/AF coating that integrates into the existing bridge network over standard NMEA 0183, with a dedicated Bridge Alert Management channel and USB-C for backup and software updates.
System Specifications
Display
5” capacitive touch display with AG/AF coating
Power
12-24 V DC, dual DC power inputs with automatic redundancy and power failure alarm
Environment
-20 °C to +70 °C, compass safe distance 1.30 m standard / 0.85 m steering
Interfaces & Integration
Power
12-24 V DC, dual DC power inputs with automatic redundancy and power failure alarm
Sensor port
Full duplex RS-422 port with 24V DC current monitoring
High-speed NMEA
4 × configurable NMEA 0183 ports, input or output
BAM interface
Full-duplex NMEA port for the Bridge Alert Management network
Dry-Contact
One dry-contact ss-relay interface
USB
USB-C, for backup and software updates
MScribe AIS System Includes
1 × Display Unit
5200 (5-inch)
1 × Display Mounting Bracket
DBRT, deck or flush mount
1 × Power Cable
12-24 V DC, fused
Also supplied
Quick-start card, digital-manual QR card and the installation manual
When the question is what happened, have the answer.
MScribe AIS turns steering and surrounding traffic into a record you can go back to — for manoeuvre review, crew training, incident investigation and port-state or charterer queries. No paper, no ink, no missing hour.
