The right vessel data, on every screen that needs it.
NetBlink puts the information a watch needs on a 5-inch or 7-inch touchscreen, anywhere on board. Each display is configured for its own station, and its NMEA, Ethernet and CAN connections suit the bridge, the engine room or a repeater position.

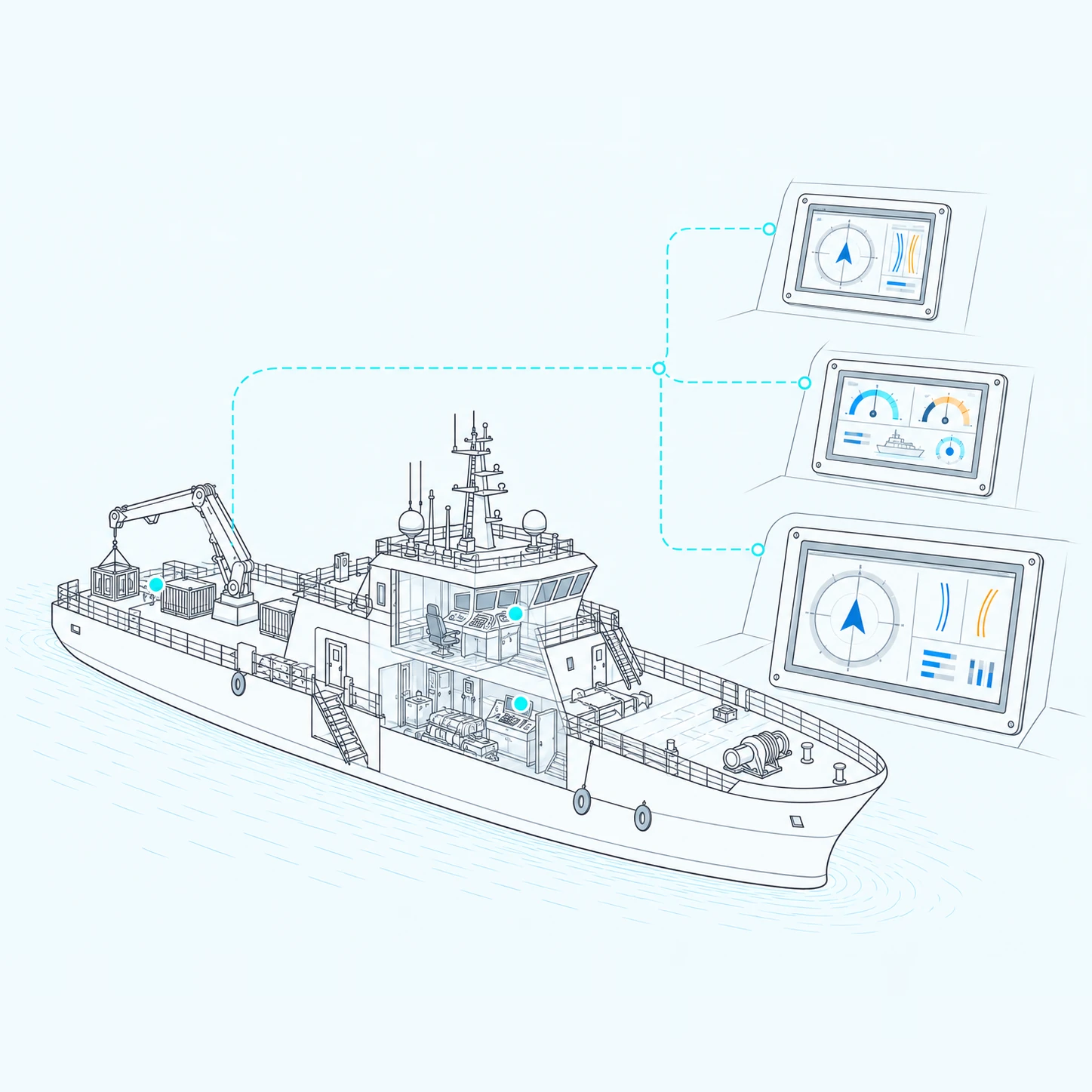

The same data, at every station.

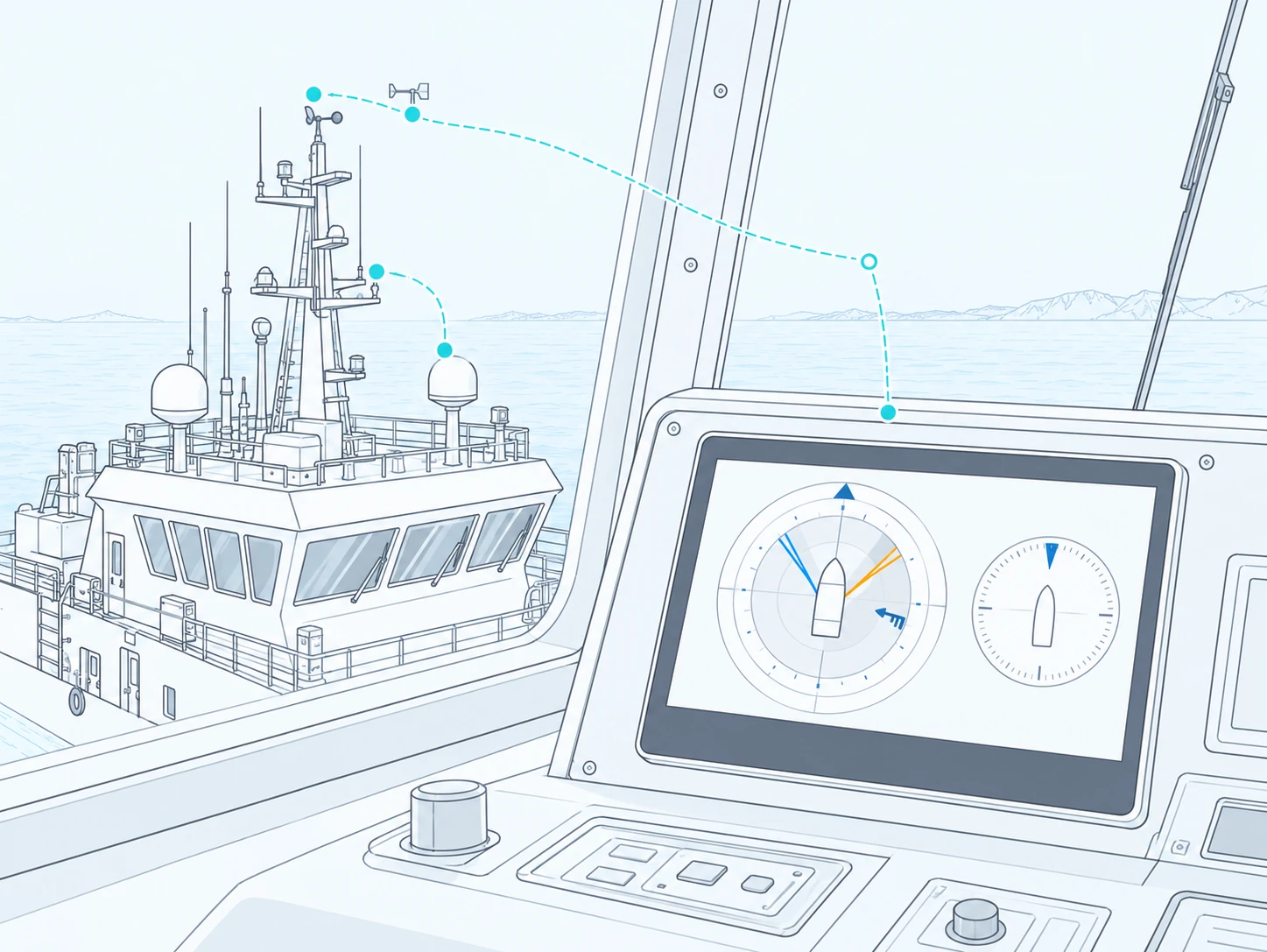

Connected sensors on one screen

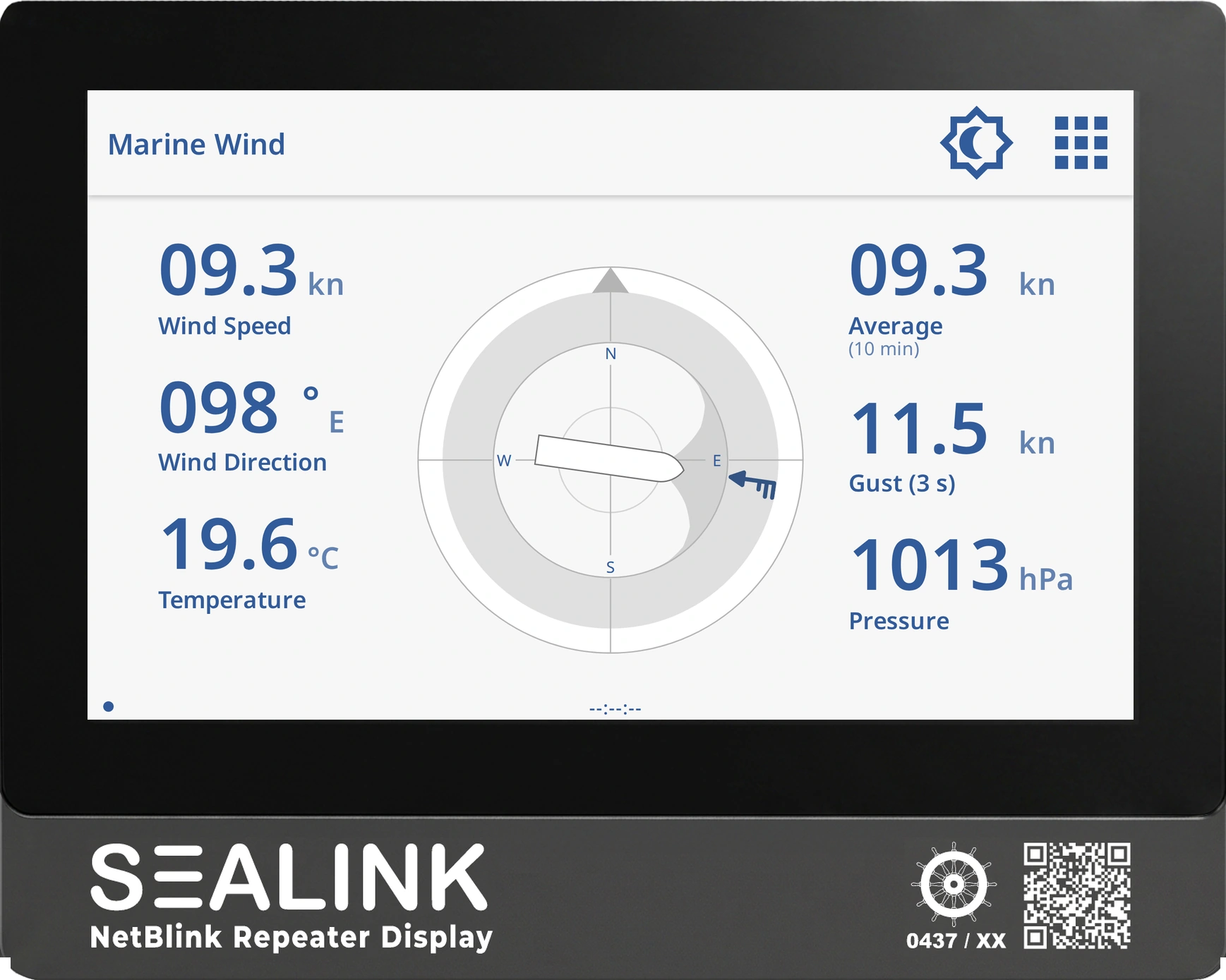

Wind, heading and the other connected sources are drawn on the NetBlink display, so what the sensors measure is read in one place instead of at the instrument that produced it.
A screen where the work is
The same data reaches the bridge and the other working positions, so a repeater can be put wherever a value is needed.

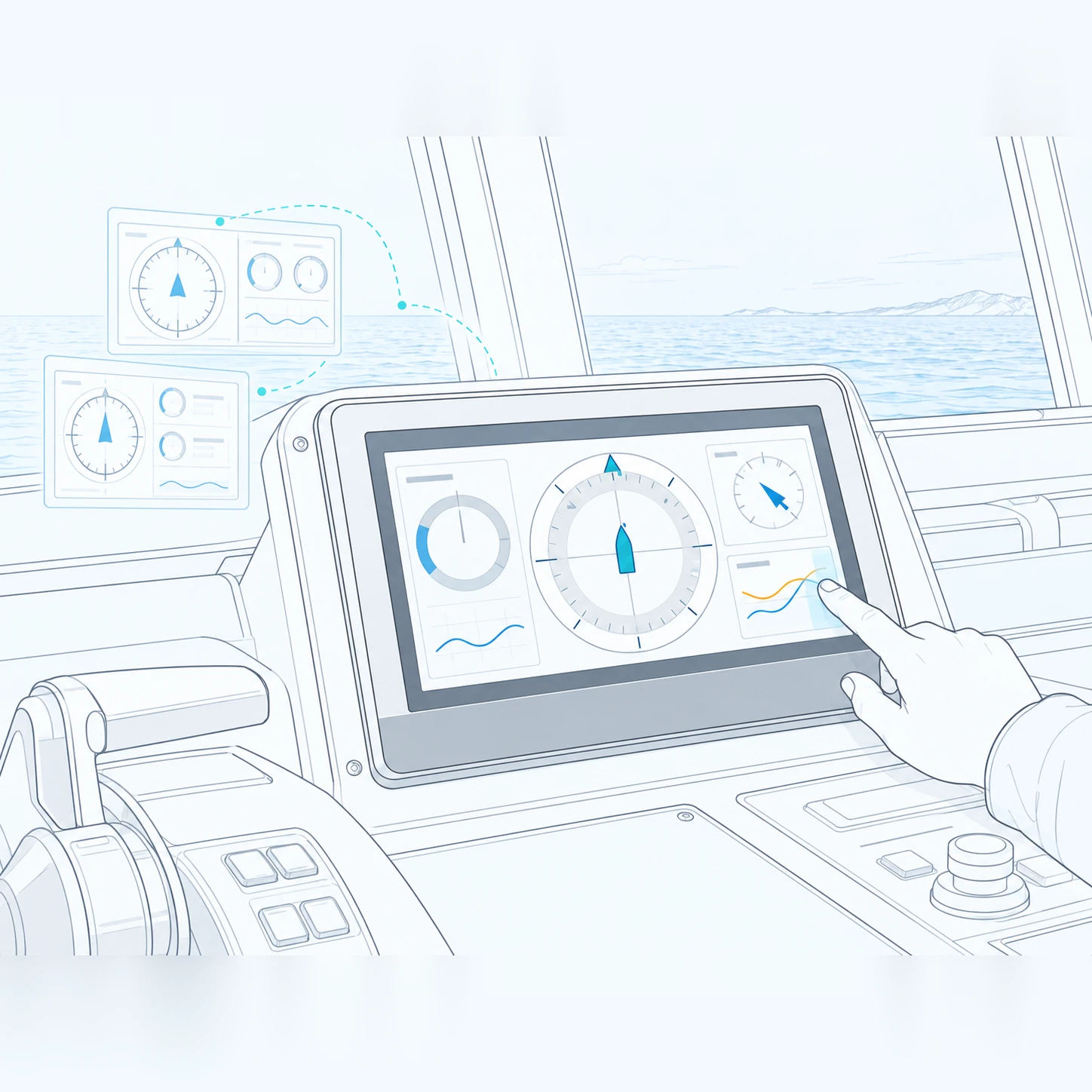

Laid out for that station
The view is arranged for the position it stands in: the readings that matter there are chosen from the supported data and the rest is left off.
Key Benefits
5-inch and 7-inch touchscreen display platforms.
Configurable presentation of supported vessel data.
Model-specific NMEA, Ethernet and CAN connectivity.
Power and data networking options for repeater installations.
Data where crews need it
Vessel information where crews need it.
NetBlink marine repeater displays bring selected vessel data to bridge consoles and other onboard stations. The 5-inch and 7-inch touchscreen platforms support configurable views and model-specific connectivity, including NMEA interfaces, Ethernet and options such as PoE for suitable installations.
System Specifications
Display | 5” and 7” capacitive touch displays with AG/AF coating
Power | 12-24 V DC, dual DC power inputs with automatic redundancy and power failure alarm
Environment | -20 °C to +70 °C, compass safe distance 1.30 m standard / 0.85 m steering

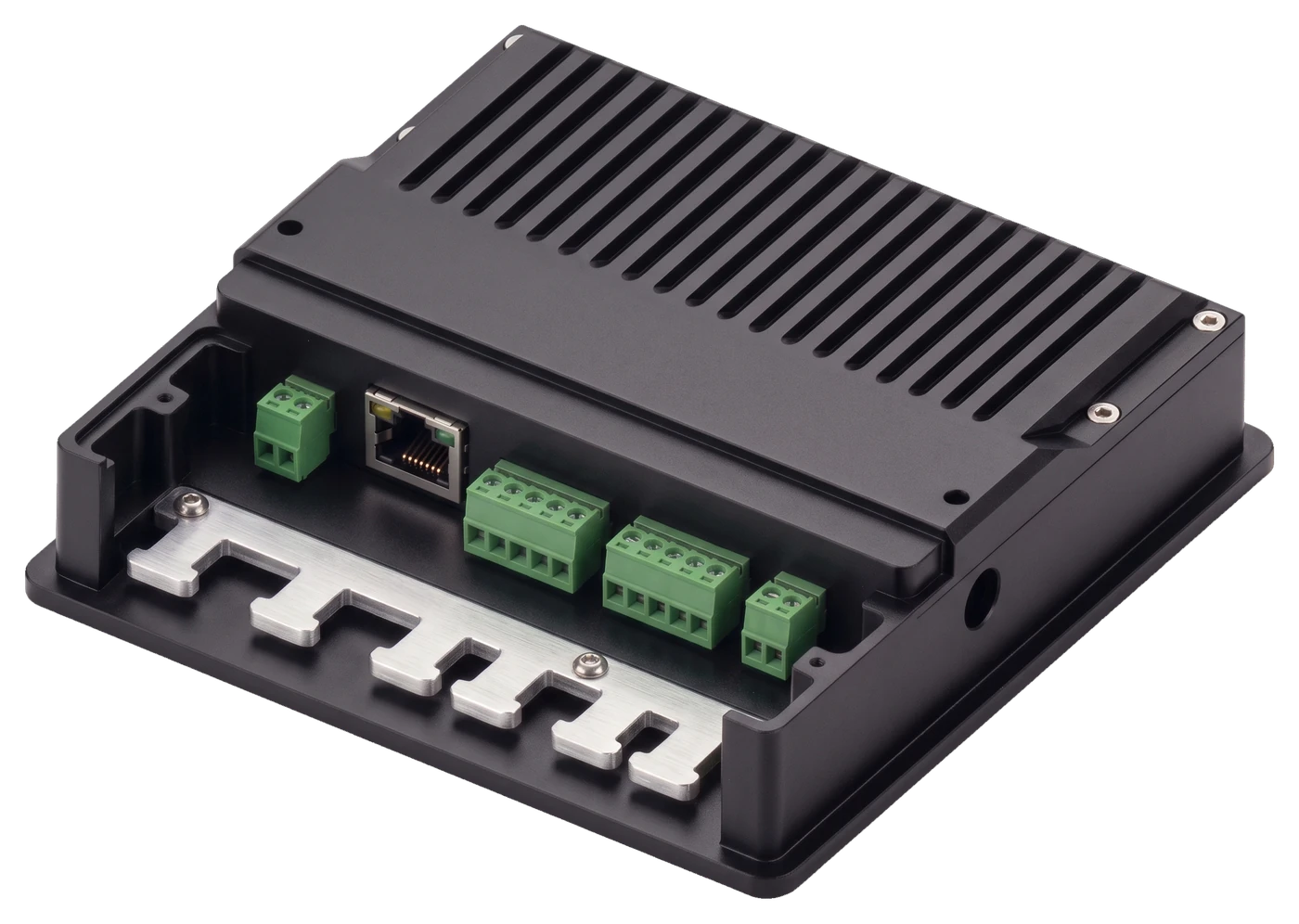

Interfaces & Integration
Power | 12-24 V DC, dual DC power inputs with automatic redundancy and power failure alarm
Sensor port | Full duplex RS-422 port with 24V DC current monitoring
High-speed NMEA | 4 × configurable NMEA 0183 ports, input or output
BAM interface | Full-duplex NMEA port for the Bridge Alert Management network
Dry-Contact | One dry-contact ss-relay interface
USB | USB-C, for backup and software updates
NetBlink System Includes
1 × Display Unit
NetBlink 5100 (5-inch) or 7200 (7-inch)
1 × Display Mounting Bracket
DBRT, deck or flush mount
1 × Power Cable
12-24 V DC, fused
Model options
CAN / NMEA 2000, redundant DC supply and PoE connectivity, as ordered
Also supplied
Quick-start card, digital-manual QR card and the installation manual
Plan Your Repeater Stations
Bridge consoles, engine-room repeaters and vessel instrument upgrades.
